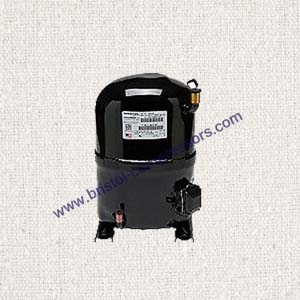

Bristol - H7NG244DRE
If need further information about this product, please contact with us.
Motor Input Watts @45/130 : 22398
Motor Input Watts @45/100 : 18801
Displacement: 26.80 @ IN3/REV
Displacement: 439.00 @ CM3/REV
Specification: 60Hz [ 460 VOLTS - 3 phase ]
| @45/130 | @45/100 | ||||||
|---|---|---|---|---|---|---|---|
| Capacity | Motor Input WATTS | EER/COp | Capacity | Motor Input WATTS | EER | ||
| BTU/H | WATTS | BTU/WH | W/W | BTU/H | BTU/WH | ||
| 223238 | 65503 | 22398 | 10.0 | 2.9 | 329836 | 18801 | 17.5 |
| Electrical Data | Displacement | |||
|---|---|---|---|---|
| RLA | LRA | MCC | IN3/REV | CM3/REV |
| 36.6 | 180 | 56.0 | 26.80 | 439.00 |
Specification: 50Hz [ 380/415 VOLTS - 3 phase ]
| @45/130 | @45/100 | ||||||
|---|---|---|---|---|---|---|---|
| Capacity | Motor Input WATTS | EER/COp | Capacity | Motor Input WATTS | EER | ||
| BTU/H | WATTS | BTU/WH | W/W | BTU/H | BTU/WH | ||
| 186032 | 54586 | 18665 | 10.0 | 2.9 | 274864 | 15668 | 17.5 |
| Electrical Data | Displacement | |||
|---|---|---|---|---|
| RLA | LRA | MCC | IN3/REV | CM3/REV |
| 36.5 | 190 | 56.0 | 26.80 | 439.00 |
| Oil Charge | Weight | ELECTRICAL START COMpONENTS | DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Net | Ship | Run Capacitor | Start Capacitor | G.E | A | B | C | |||||||
| OZ | L | Lba | kg | Lba | kg | MFD/VOLTS | MFD/VOLTS | Relay | IN | MM | IN | MM | IN | MM |
| 224 | 6.6 | 247 | 112.3 | 269 | 122.3 | -Not Req’d | -Not Req’d | -Not Req’d | 11.8 | 299.5 | 21.8 | 552.0 | 22.4 | 568.8 |
Brand Name
Bristol
Model Number
H7NG244DRE
Volts
460 Volts
Phase
3
Hz
60
